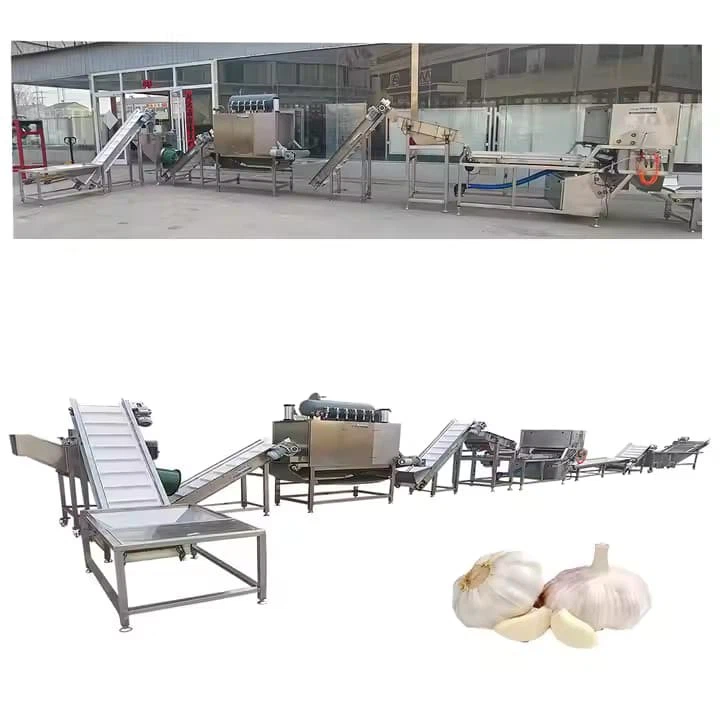

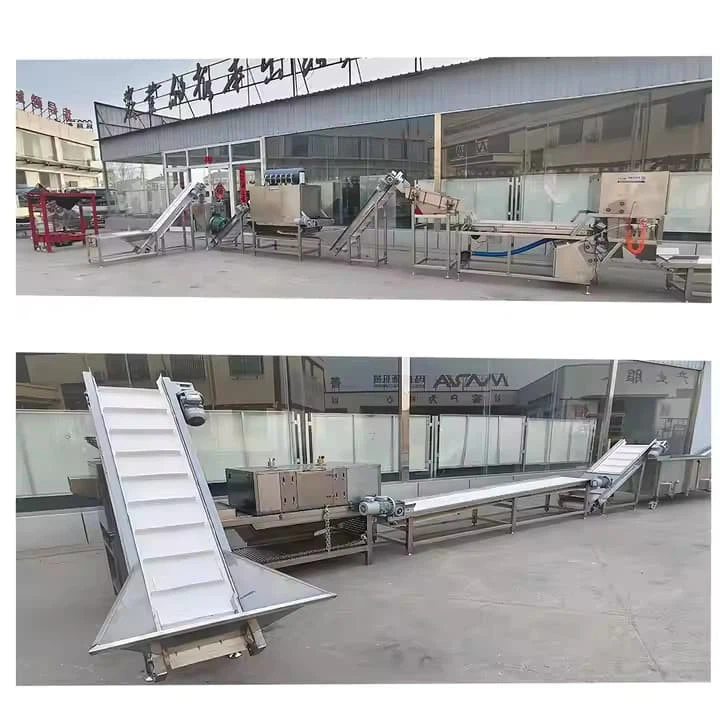

Garlic Deep Processing Line Full-automatic Clearing Machine And Garlic Peeling and Splitting production line Machine

Products Series

Gralic peeler

Peeled garlic production line is designed and manufactured specifically for the deep processing of garlic, including clovers, peelers, color selectors, manual selection platforms, disinfection tanks, cleaning chains, dryers, and other parts. The output ranges

Gralic peeler

Peeled garlic production line is designed and manufactured specifically for the deep processing of garlic, including clovers, peelers, color selectors, manual selection platforms, disinfection tanks, cleaning chains, dryers, and other parts. The output ranges

Gralic peeler

Peeled garlic production line is designed and manufactured specifically for the deep processing of garlic, including clovers, peelers, color selectors, manual selection platforms, disinfection tanks, cleaning chains, dryers, and other parts. The output ranges

Gralic peeler

It can achieve one-stop automatical service for galic's splitting , grading, peeling washing

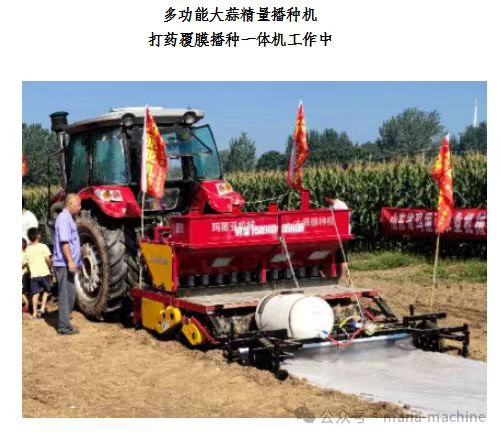

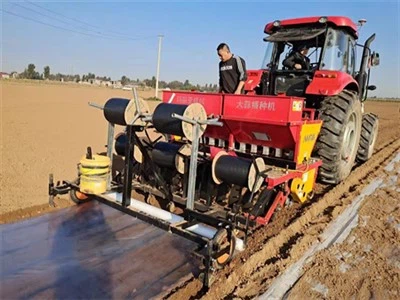

Garlic planter

Maria Machinery has pioneered the world's first precision vertical garlic planter, ensuring a minimum of 93% garlic clove seeds are planted upright



Onion sorter

Onion (fruit) sorting machine includes three parts, brush machine, loading table, sorting host. It can accurately sort onion grades
and remove onion surface dust and floating skin

Garlic planter

Maria Machinery has pioneered the world's first precision vertical garlic planter, ensuring a minimum of 93% garlic clove seeds are planted upright

Garlic havester

Garlic harvester 4DS-204A is suitable for all kinds of soil conditions.
It can harvest garlic easily on hard plots. With its excellent and solid quality, high cost performance and timely and accurate after-sales service, It is deeply welcomed by users.

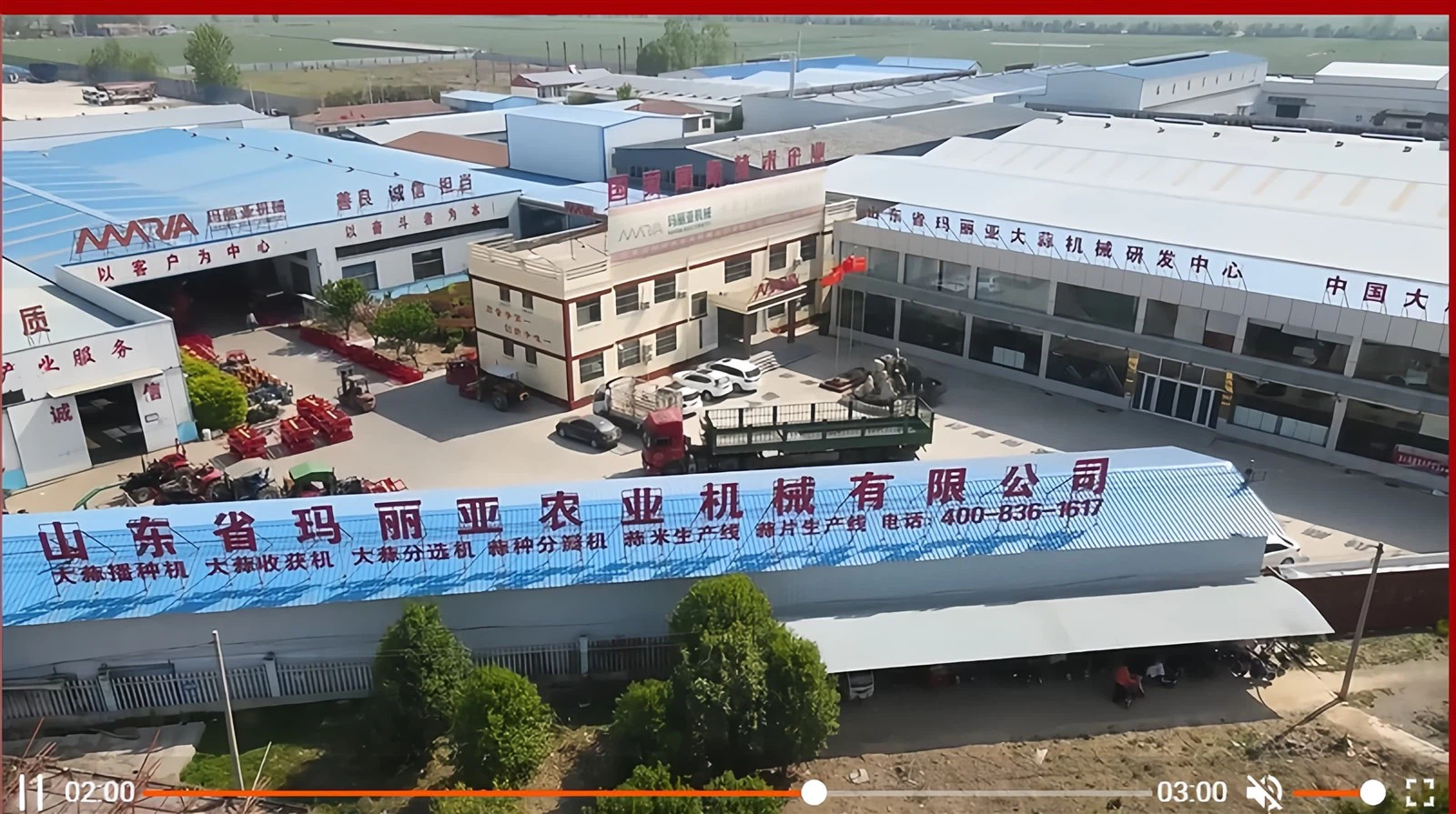

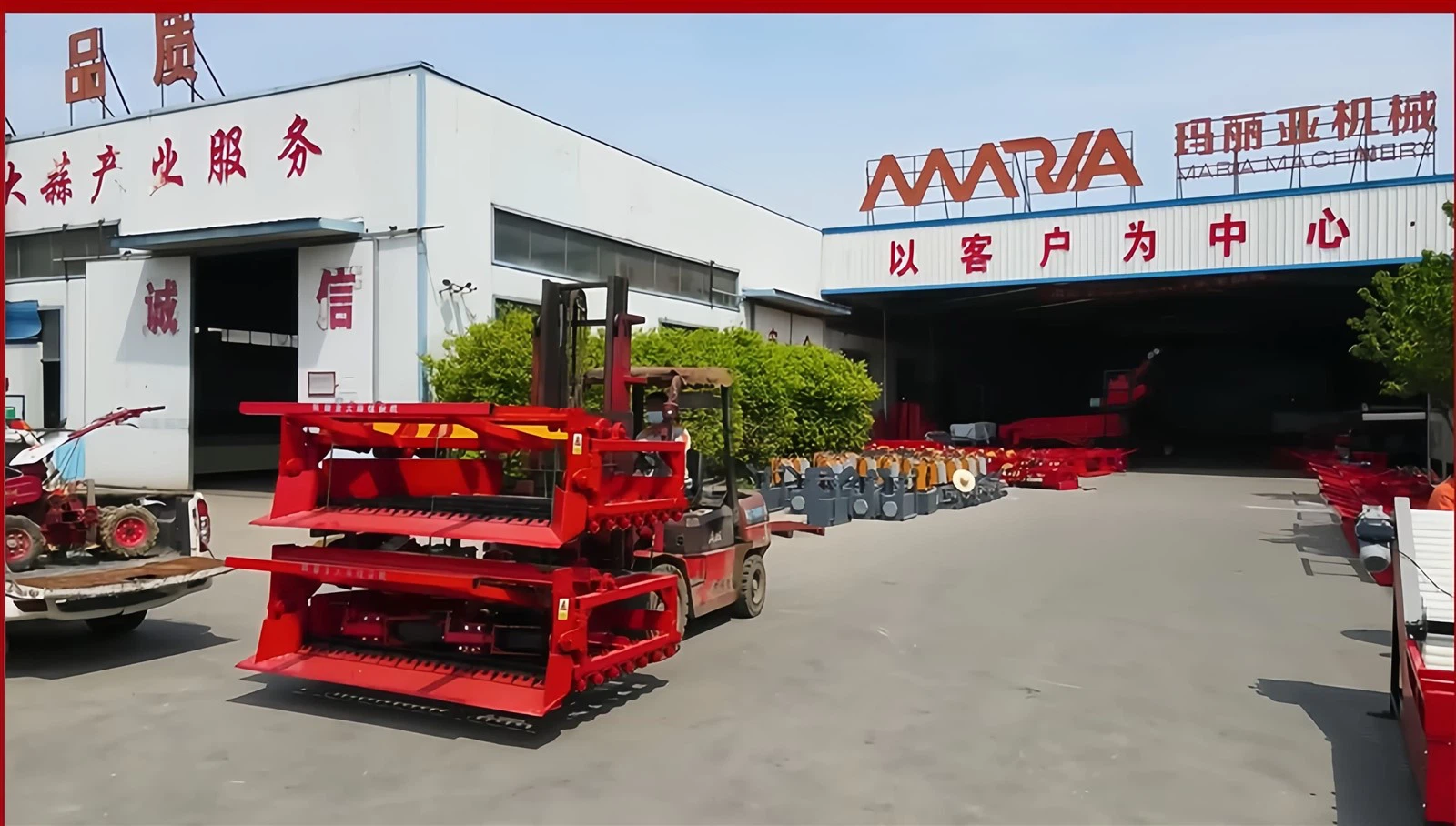

Shandong Maria Agricultural Machinery Co.,Ltd

The company was founded in jinxiang county, shandong province in 2011. Our company mainly develops, processes and sells garlic machinery. In the process of development, the company keeps innovating. In a few years, we have created many satisfying products, garlic farmers and garlic processing enterprises have brought great benefits. Our products are popular with new and old customers, and our products are sold to all countries and regions of the world.

It is an integrated research and development, manufacturing and sales. The company mainly engaged in the garlic industry machinery products, our products are sold at home and abroad. Maria machinery products include: Garlic clove processing machine, garlic sowing machine, garlic planter, garlic harvester, garlic sorting machine, garlic rice machine, garlic peeler, garlic splitter, garlic sorter, onion sorter, fruit sorter, garlic slicing machine, black garlic machine, etc.

. Now, Maria Machinery offers 12 series of 156 products including agricultural machinery for the cultivation and harvest of garlic and automatic equipment for all steps of garlic processing to ensure whole-process automation in the garlic industry. Maria Machinery developed China's first garlic planter capable of adjusting garlic sprouts, which filled an international blank.At present, its agricultural equipment has been widely used in 31 domestic provinces andmore than 30 countries and regions.Sales area: China, Spain, Brazil, Japan, Korea, USA, Canada, Mexico, Russia, Ukraine, Germany, Algeria, Malaysia, Thailand, Vietnam, India, Argentina, Chile, Turky, Kazakhastan and Australia so on more than 30 countries.



100+

Mechanics



200+

products series



100000+

Annual production capacity



200+

Employees

                                                                                       product advantages



























                                                                                            Official certification

cE certification

cE certification

cE certification

cE certification

CQ,M certification

Product descriptions from the supplier

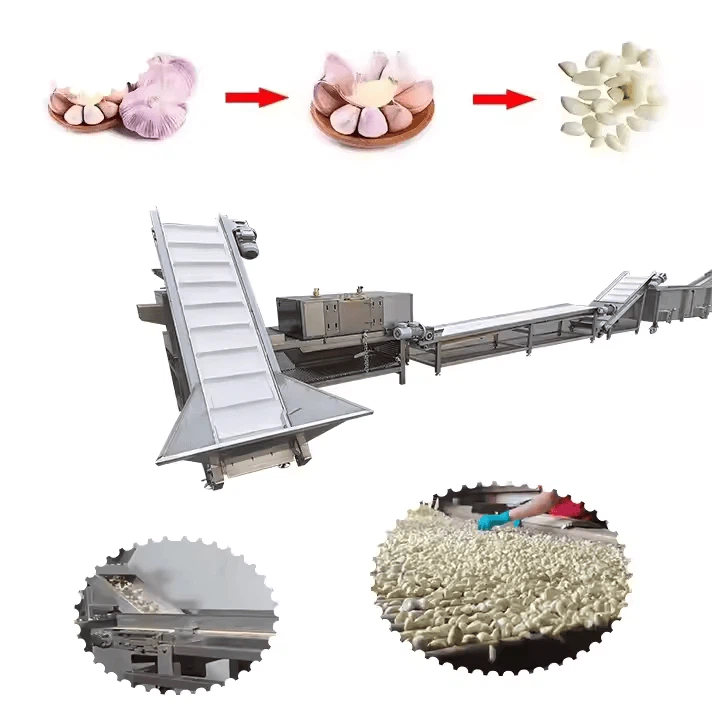

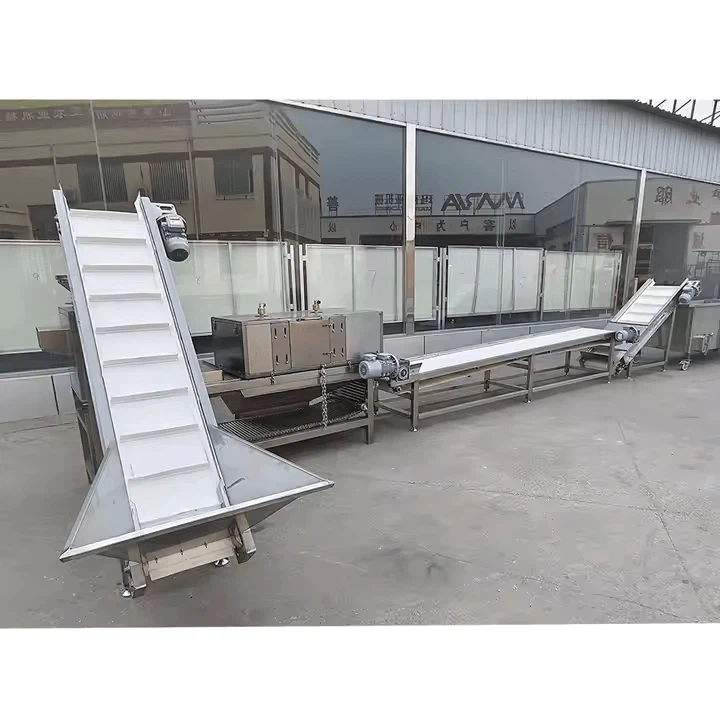

200kg output peeled garlic production line
Item	Component in sequence					Model				Qty		Spec				Size (mm)					Weight(kg)			Voltage			Power(kw)
1	Elevator					6GSL-2.2				1		2.2m×0.4m (Belt width)				2198*910* 1930					85			380V			0.75
2	Splitter and Peeler All-in- one					6GYTJ-0.2				1		0.2T/h				2000*850* 1500					272						2.62
3	Picking platform					6GTX-4				1		4m×0.6m (Belt width)				4080*910*560					130						0.75
4	Air compressor					BK22-8G				1		/				1200*800* 1120					380						22
5	Air tank					/				1		0.6m³				1870*700					142						-
400kg output peeled garlic production line
Item	Component in sequence					Model				Qty		Spec				Size (mm)					Weight(kg)			Voltage			Power(kw)
1	Elevator					6GSL-2.2				1		2.2m×0.4m (Belt width)				2198*910* 1930					85			380V			0.75
2	Splitter and Peeler All-in- one					6GYTJ-0.4				1		0.4T/h				2650*910* 1500					272						2.72
3	Picking platform					6GTX-4				1		4m×0.6m (Belt width)				4080*910*560					130						0.75
4	Air compressor					BK37-8ZG				1		/				1340*850* 1330					570						37
5	Air tank					/				1		1m³				2150*800					200						-
500kg output peeled garlic production line
Item	Component in sequence					Model				Qty		Spec				Size (mm)					Weight(kg)			Voltage			Power(kw)
1	Elevator 1					6GSL-2.2				1		2.2m×0.4m (Belt width)				2198*910* 1930					85			380V			0.75
2	Splitter					6GFB-1				1		1T/h				1520*725* 1530					165						3
3	Elevator 2					6GSL-2				1		2m×0.5m (Belt width)				1980*790* 1360					85						0.75
4	Peeler					6GQP-0.5				1		0.5T/h				1510*990*2370					120						1.5
5	Picking platform					6GTX-4				1		4m×0.6m (Belt width)				4080*910*560					170						0.75
6	Air compressor					BK37-8ZG				1		BK37-8ZG				1340*850* 1330					570						37
7	Valves and pipes					/				1		/				/											-
8	Air tank					/				1		1m³				2150*800					200						-

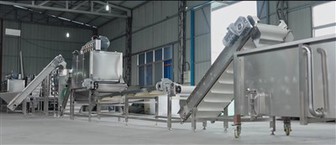

1T output peeled garlic production line
Item	Component in sequence					Model				Qty		Spec				Size (mm)					Weight(kg)			Voltage			Power(kw)
1	Hopper					6GLD-800				1		0.8m×0.8m				800*800*780					50			380V			-
2	Elevator 1					6GSL-3.5				1		3.5m×0.4m (Belt width)				3450*690*2720					85						0.75
3	Splitter					6GFB-1				1		1T/h				1520*725* 1530					165						3
4	Elevator 2					6GSL-2				1		2m×0.5m (Belt width)				1980*790* 1360					85						0.75
5	Peeler					6GQP-1				1		1T/h				2600*900*2420					700						2.25
6	Picking platform					6GTX-6				1		6m×0.6m (Belt width)				6070*910*750					260						0.75
7	Air compressor					BK55-8G				1		BK55-8G				1480* 1030* 1365					650						55
8	Valves and pipes					/				1		/				/											-
9	Air tank					/				1		1m³				2150*800					200						-
10	Electrical Cabinet					/				1		/				/					780						-

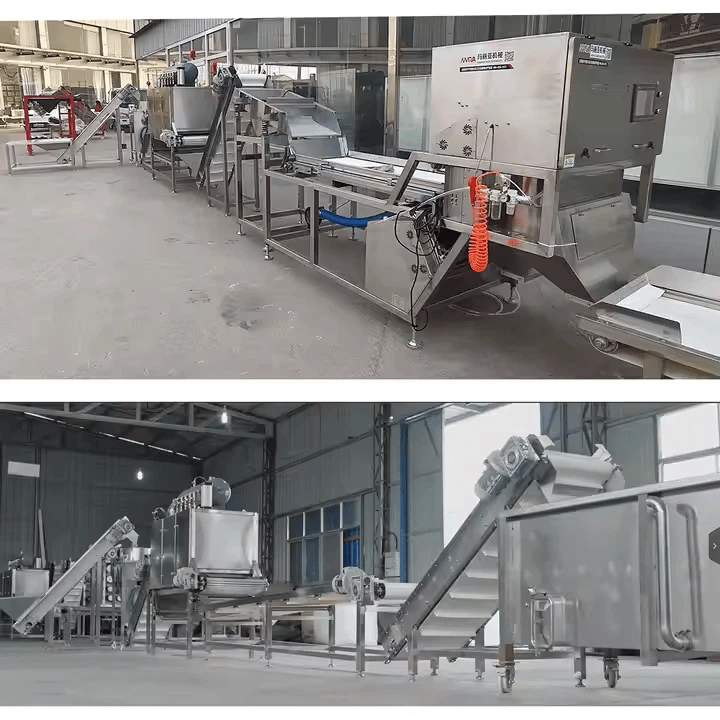

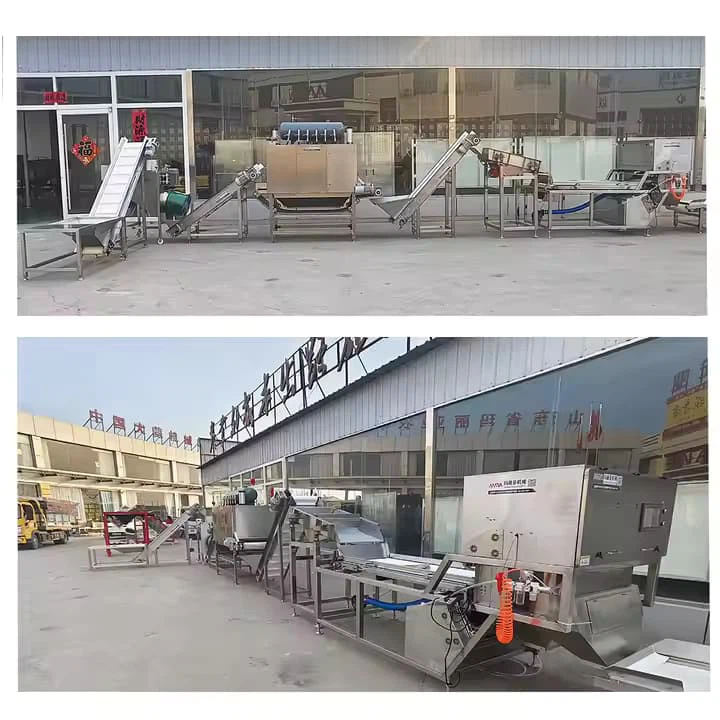

Products Details

Product Application

Catering industry:
Restaurants, fast food restaurants, etc. use garlic as the main seasoning to enhance the flavor of their dishes.
Processed food production:
Garlic is used in various processed foods, such as sauces, frozen foods, and ready to eat meals.
Food additives:
Garlic can be used as an important natural spice and additive in various foods.

Packaging and Shipping

Company Profile

Shandong Maria Machinery Co., Ltd. is located in Jinxiang County, Shandong Province, known as the garlic capital of China. Shandong Maria Machinery Co., Ltd. is a national high-tech enterprise and a specialized and innovative "little giant" enterprise. Maria Machinery adheres to the original intention of serving garlic growers and the garlic industry, and has successfully developed mechanical products suitable for the entire garlic industry chain from scratch. Now, Maria Machinery offers a total of 156 products in 12 series, including agricultural machinery for garlic planting and harvesting, as well as automated equipment for all steps of garlic processing to ensure full process automation in the garlic industry. Maria Machinery has developed China's first garlic planting machine that can adjust garlic sprouts, filling an international gap. Maria Machinery has fundamentally replaced manual labor in the garlic industry, and this production method has lasted for over 2000 years in the Chinese garlic industry, making Chinese technology internationally renowned. At present, its agricultural equipment has been widely used in 31 provinces, municipalities, and autonomous regions in China, including Shandong, Henan, Jiangsu, and Hebei. Its products have been exported to more than 30 countries and regions including the United States, Spain, Japan, South Korea, Australia, Argentina, and Brazil, and have been widely praised in domestic and international markets.

FAQ

1.Who are we?

Shandong Maria Machinery Co., Ltd. is located in Jinxiang County, Shandong Province, known as the Garlic Capital of China

2.How can we ensure quality?

Always conduct final inspection before shipment

3.What can you buy from us?

Garlic machine, sorting machine, garlic chopper, harvester, seeder

4.Why do you want to buy from us instead of other suppliers?

We have the strongest R&D team, inventing, designing, and manufacturing the most advanced high-tech garlic machines.

5.What services can we provide?

Accepted delivery terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU, Express delivery DAF,DES Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
