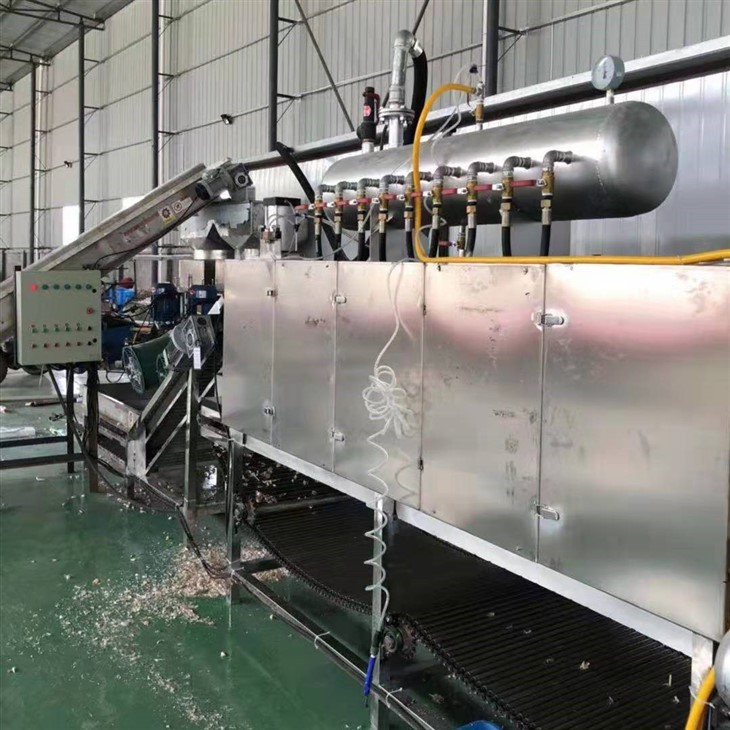

Peeled Garlic Production Line 1000kg/H
Specially designed and manufactured for garlic deep processing, including parts of garlic splitting machine, peeling machine, color sorter, manual picking platform, disinfecting tank, washing chain, wiping dry machine, etc. The output capacity is optional from 200kg to 5t, providing one-stop service from garlic head to peeled garlic, and customized is also available.
Product Introduction
1. Product Description of the Peeled garlic production line
Specially designed and manufactured for garlic deep processing, including parts of garlic splitting machine, peeling machine, color sorter, manual picking platform, disinfecting tank, washing chain, wiping dry machine, etc. The output capacity is optional from 200kg to 3t, providing one-stop service from garlic head to peeled garlic, and customized is also available.
At present, Maria peeled garlic production lines mainly include 200kg/h peeled garlic production line, 400kg/h peeled garlic production line, 500kg/h peeled garlic production line, 1 ton/h peeled garlic production line, 1.5 ton/h peeled garlic production line, 2 ton/h peeled garlic production line, 3 ton/h peeled garlic production line and 5 ton/h peeled garlic production line, etc.
2. Intorduction of the garlic clove production line
The specific form can be customized according to customer requirements. Taking the 1 ton peeled garlic production line as an example, the overall equipment of the production line is divided into (according to the production process): garlic bulb feeding hopper, conveyor, garlic splitting machine, garlic peeling machine, color sorting machine, selection platform, soaking pool, bubble washing pool, drying machine, etc. The output can reach 1 ton/hour. The linear extension length of the production line which including the cold warehouse is up to 40 meters, and the production line layout can be designed according to the situation of customer's factory.
The equipment is for the garlic peeling process production line. Now, let us introduce the work of some machines as following:
1) Garlic splitting machine : Garlic bulbs are divided into cloves, and the removed garlic skins are collected into the skin collection device, the separated garlic cloves fall into the elevator and then enter the peeling process.
2) Garlic peeling machine: The net peeling rate of garlic is as high as 95%; the peeling rate of dry pure white garlic can even reach more than 99%. The garlic skins are collected into the skin collecting device too, and the garlic is less damaged.
3) Color sorting machine: The color sorter can sort out the unqualified garlic cloves automatically. And there are normal color sorer without AI deep learning function and the upgraded model with AI deep learning technology for better sorting result.
4) Hand Picking platform: Peeled garlic enters the belt conveyor, and workers can sort out unpeeled garlic, garlic roots and other sundries.
5) Garlic bubble washing machine: The selected garlic cloves automatically enter into the bubble washing pool, and then the peeled garlic is cleaned by water.
6) Air-drying machine: Use the strong wind of the air dryer to dry the surface water of the cleaned peeled garlic, and remove the residual moisture of the garlic cloves.
3. Product parameters of the Peeled Garlic Production Line
| 1T output peeled garlic production line | ||||||||
| Item | Component in sequence | Model | Qty | Spec | Size (mm) | Weight(kg) | Voltage | Power(kw) |
| 1 | Hopper | 6GLD-800 | 1 | 0.8m×0.8m | 800*800*780 | 380V | - | |
| 2 | Elevator 1 | 6GSL-3.5 | 1 | 3.5m×0.4m (Belt width) |
3450*690*2720 | 0.75 | ||
| 3 | Splitter | 6GFB-1 | 1 | 1T/h | 1520*725*1530 | 3 | ||
| 4 | Elevator 2 | 6GSL-2 | 1 | 2m×0.5m (Belt width) |
1980*790*1360 | 0.75 | ||
| 5 | Peeler | 6GQP-1 | 1 | 1T/h | 2600*900*2420 | 2.25 | ||
| 6 | Picking platform | 6GTX-6 | 1 | 6m×0.6m (Belt width) |
6070*910*750 | 0.75 | ||
| 7 | Air compressor | BK55-8G | 1 | BK55-8G | 1480*1030*1365 | 55 | ||
| 8 | Valves and pipes | / | 1 | / | / | - | ||
| 9 | Air tank | / | 1 | 1m³ | 2150*800 | - | ||
| 10 | Electrical Cabinet | / | 1 | / | / | - | ||
| With color sorter | ||||||||
| Item | Component in sequence | Model | Qty | Spec | Size (mm) | Weight(kg) | Power(kw) | Remark |
| 1 | Hopper | 6GLD-800 | 1 | 0.8m×0.8m | 800*800*780 | - | ||
| 2 | Elevator 1 | 6GSL-3.5 | 1 | 3.5m×0.4m (Belt width) |
3450*690*2720 | 0.75 | Frequency conversion | |
| 3 | Splitter | 6GFB-1 | 1 | 1T/h | 1520*725*1530 | 3 | ||
| 4 | Elevator 2 | 6GSL-2 | 1 | 2m×0.5m (Belt width) |
1980*790*1360 | 0.75 | ||
| 5 | Peeler | 6GQP-1 | 1 | 1T/h | 2600*900*2420 | 2.25 | Frequency conversion | |
| 6 | Elevator 3 | 6GSL-3 | 1 | 3m×0.6m (Belt width) |
2980*890*2400 | 0.75 | ||
| 7 | Color Sorter | 6SXZ-60K4 | 1 | 60K4 | 3530*1200*2000 | 3.1 | ||
| 8 | Substandard Garlic Cloves Conveyor Belt | 6GCM-2 | 1 | 2m×0.3m (Belt width) |
2000*530*700 | 0.37 | ||
| 9 | Picking platform | 6GTX-4 | 1 | 4m×0.6m (Belt width) |
4080*910*560 | 0.75 | Frequency conversion | |
| 10 | Elevator 4 | 6GSL-2 | 1 | 2m×0.5m (Belt width) |
1980*790*1360 | 0.75 | ||
| 11 | disinfection pool | 6GXDC-5 | 1 | 5m×0.7m (Belt width) |
5040*1140*1500 | 1.85 | ||
| 12 | Dryer machine | 6GCGJ-1 | 1 | 3m×1.15m (inner width) |
2895*1590*990 | 1.5 | ||
| 13 | Air compressor | BK75-8G | 1 | BK75-8G | 1800*1190*1710 | 75 | ||
| 14 | Cold dryer | SAD-1 | 1 | 1.2m³/min | 650*400*700 | 0.327 | 220V | |
| 15 | Tank | 2m³ | 1 | 2m³ | 2898*1000 | - | ||
| 16 | Electrical Cabinet | / | 1 | / | - | - | ||
| 17 | Valves and pipes | / | 1 | / | - | - | ||
| With color sorter &washing chain | ||||||||
| Item | Component in sequence | Model | Qty | Spec | Size (mm) | Weight(kg) | Power(kw) | Remark |
| 1 | Hopper | 6GLD-800 | 1 | 0.8m×0.8m | 800*800*780 | - | ||
| 2 | Elevator 1 | 6GSL-3.5 | 1 | 3.5m×0.4m (Belt width) |
3450*690*2720 | 0.75 | Frequency conversion | |
| 3 | Splitter | 6GFB-1 | 1 | 1T/h | 1520*725*1530 | 3 | ||
| 4 | Elevator 2 | 6GSL-2 | 1 | 2m×0.5m (Belt width) |
1980*790*1360 | 0.75 | ||
| 5 | Peeler | 6GQP-1 | 1 | 1T/h | 2600*900*2420 | 2.25 | Frequency conversion | |
| 6 | Elevator 3 | 6GSL-3 | 1 | 3m×0.6m (Belt width) |
2980*890*2400 | 0.75 | ||
| 7 | Color Sorter | 6SXZ-60K4 | 1 | 60K4 | 3530*1200*2000 | 3.1 | ||
| 8 | Unqualified cloves conveyor | 6GCM-2 | 1 | 2m×0.3m (Belt width) |
2000*530*700 | 0.37 | ||
| 9 | Packing platform | 6GTX-4 | 1 | 4m×0.6m (Belt width) |
4080*910*560 | 0.75 | Frequency conversion | |
| 10 | Elevator 4 | 6GSL-4 | 1 | 4m×0.6m (Belt width) |
3950*790*3220 | 0.75 | ||
| 11 | Washing chain | 6GQXL-2.7 | 1 | 2.7m×0.6m (Belt width) |
2700*930*1360 | 0.75 | ||
| 12 | Disinfection pool | 6GXDC-5 | 1 | 5m×0.7m (Belt width) |
5040*1140*1500 | 1.85 | ||
| 13 | Drying machine | 6GCGJ-1 | 1 | 3m×1.15m (inner width) |
2895*1590*990 | 1.5 | ||
| 14 | Air compressor | BK75-8G | 1 | BK75-8G | 1800*1190*1710 | 75 | ||
| 15 | Cold dryer | SAD-1 | 1 | 1.2m³/min | 650*400*700 | 0.327 | 220V | |
| 16 | Tank | 2m³ | 1 | 2m³ | 2898*1000 | - | ||
| 17 | Conveying Pipe | / | 1 | DN250 | / | - | ||
| 18 | Electrical Cabinet | / | 1 | / | - | - | ||
| 19 | Valves and pipes | / | 1 | / | - | - | ||
| With washing chain & inspection platform with light | ||||||||
| Item | Component in sequence | Model | Qty | Spec | Size (mm) | Weight(kg) | Power(kw) | Remark |
| 1 | Hopper | 6GLD-800 | 1 | 0.8m×0.8m | 800*800*780 | - | ||
| 2 | Elevator 1 | 6GSL-3.5 | 1 | 3.5m×0.4m (Belt width) |
3450*690*2720 | 0.75 | Frequency conversion | |
| 3 | Splitter | 6GFB-1 | 1 | 1T/h | 1520*725*1530 | 3 | ||
| 4 | Elevator 2 | 6GSL-2 | 1 | 2m×0.5m (Belt width) |
1980*790*1360 | 0.75 | ||
| 5 | Peeler | 6GQP-1 | 1 | 1T/h | 2600*900*2420 | 2.25 | ||
| 6 | Elevator 3 | 6GSL-3 | 1 | 3m×0.6m (Belt width) |
2980*890*2400 | 0.75 | ||
| 7 | Color Sorter | 6SXZ-60K4 | 1 | 60K4 | 3530*1200*2000 | 3.1 | ||
| 8 | Unqualified cloves conveyor | 6GCM-2 | 1 | 2m×0.3m (Belt width) |
2000*530*700 | 0.37 | ||
| 9 | Unqualified cloves conveyor | 6GCM-1.5 | 1 | 1.5m×0.3m (Belt width) |
1500*530*700 | 0.37 | ||
| 10 | Elevator 4 | 6GSL-1.7 | 1 | 1.7m×0.5m (Belt width) |
1700*785*1470 | 0.55 | ||
| 11 | Picking platform (With Light) |
6GTXD-4 | 1 | 4m×0.96m (Belt width) |
4040*1260*1885 | 0.75 | Frequency conversion | |
| 12 | Disinfection pool | 6GXDC-5 | 1 | 5m×0.7m (Belt width) |
5040*1140*1500 | 1.85 | ||
| 13 | Drying machine | 6GCGJ-1 | 1 | 3m×1.15m (inner width) |
2895*1590*990 | 1.5 | 220V | |
| 14 | Return conveyor belt | 6GHL-5 | 2 | 5m×0.4m (inner width) |
5060*680*710 | 0.55 | ||
| 15 | Air compressor | BK75-8G | 1 | BK75-8G | 1800*1190*1710 | 75 | ||
| 16 | Cold dryer | SAD-1 | 1 | 1.2m³/min | 650*400*700 | 0.327 | ||
| 17 | Tank | 2m³ | 1 | 2m³ | 2898*1000 | - | ||
| 18 | Electrical Cabinet | / | 1 | / | - | - | ||
| 19 | Valves and pipes | / | 1 | / | - | - | ||
4. Product Features and Applications of the Stainless steel garlic peeling machine.
The principle of Maria Machinery's peeled garlic machine is simple, but it is very environmentally friendly and practical. Pour the garlic bulb into the feeding port, mechanically separate and peel the garlic, and then you can directly get the peeled garlic. Using the principle of air blowing, there is no need to soak in water. The separated garlic peels can also be used in the breeding industry. It is environmentally friendly and affordable. It allows the factory to save freight and reduce losses. It is simple and convenient, requires less labor, and achieves many benefits with one stone.
5. Product details of the Stainless steel garlic peeling machine
6. Customer cases:
7. Application site of peeled garlic equipment
8. The working vedio of peeled garlic production line
9. Professional Advisory Q & A:
Q: What is the Garlic Peeling Machine Used for?
A: It is an automatic industrial use garlic peeling machine, mainly used for garlic clove skin removing. Feeding the garlic bulbs or cloves into the hopper, then the garlic skin and clove will separate automatically.
Q: How many of the available models of peeled garlic machines?
A: 8 models with different production capacities are available from Maria Machinery, including capacities: 200kg/hour, 400kg/hour, 500kg/hour, 1ton/hour, 1.5tonkg/hour, 2mt/hour, 3mt/hour and 5mt/hour.
Q: What is the maximum production capacity of the peeled garlic machine?
A:The largest peeling capacity could reach to 5000kg/h. It is the best choice for food industry, and a must-have peeler for commercial purpose where mass garlic (skin removing) production is required.
Q: What is the advantages of your machine?
A: Only the good quality machine we supply. And the best factory price based on superior product and service.
Q: How long it takes to delivery?
A: Usually, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
Q: Is the company responsible for the installation?
A: All the machines will be tested well before delivery, so almost all of them can be used directly, also our machine are easy to be installed, if you needs our assistance, we will be pleased to arrange the installation, but all the cost will be be charged.
Q: How can I get after-sales service?
A: We will send you the spare parts by free if the problems caused by us. If it is the men-made problems, the spare parts will be charged. Any problem, you can call or email us directly.
