Large Gralic sorting machine grader equipment Garlic Processing Equipment Sorting agriculture grader equipment

Maria Agricultural Machinery is rooted in Jinxiang, Shandong, known as the "Garlic Capital of the World", and leverages its position as a national high-tech enterprise and a specialized, refined, and innovative "little giant" enterprise to reshape the global garlic industry. As the only pioneer of fully mechanized and precise sowing technology for garlic cultivation in China, we have completely changed the industry with 12 product series and 156 innovative machines, ending the dilemma of "no machinery available" in the industry. Our solution has been validated in 30 global markets, injecting intelligent innovation into 450000 hectares of farmland worldwide.

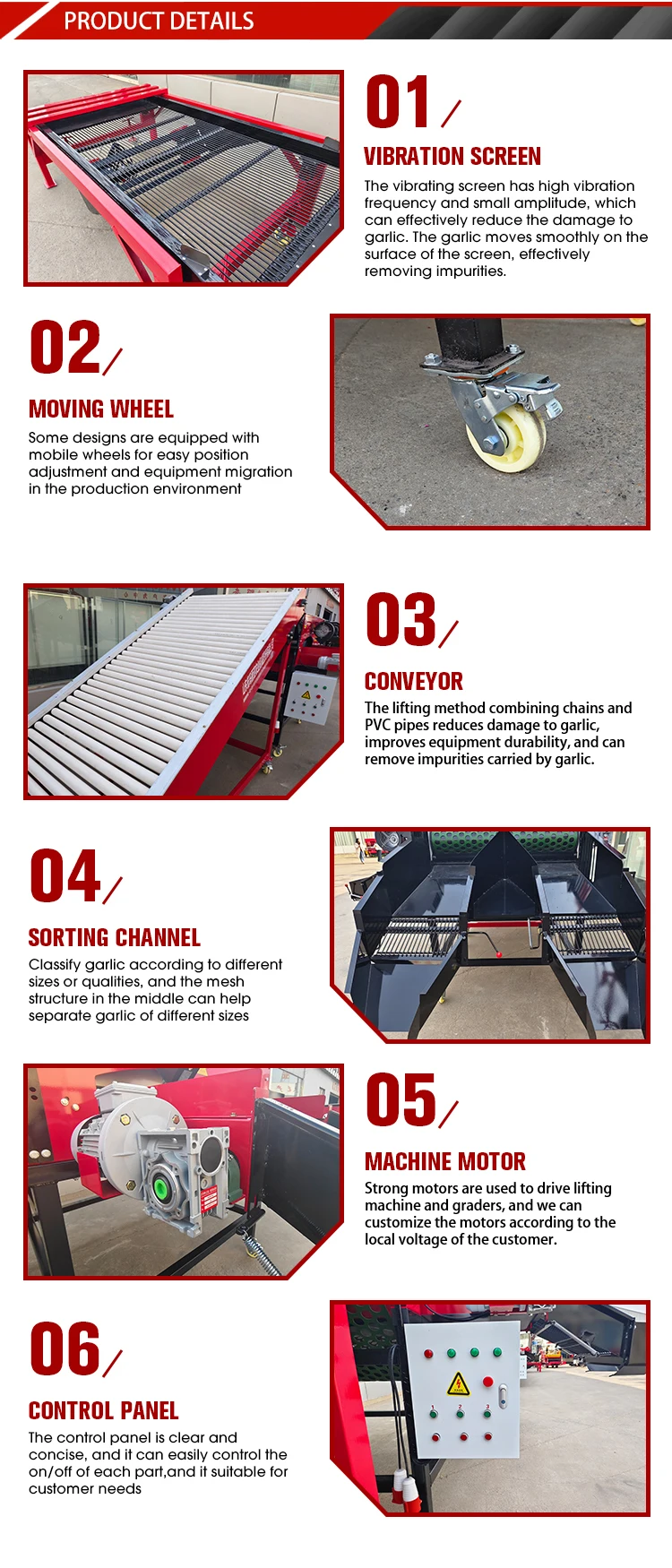

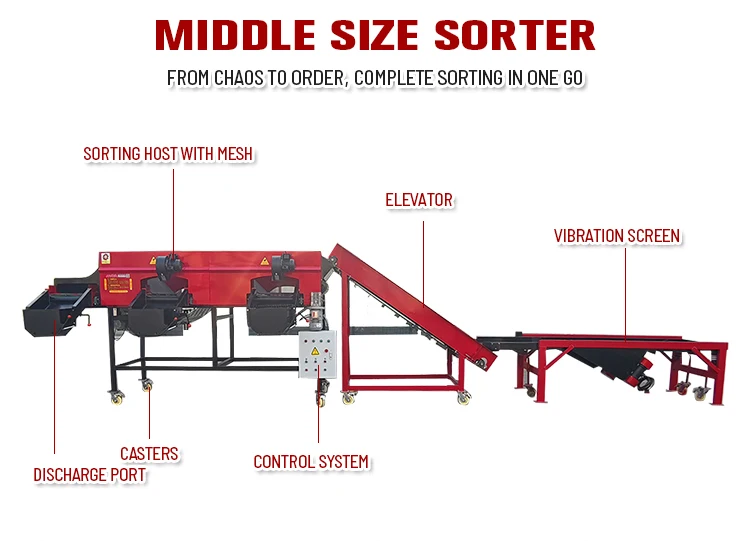

Garlic sorting machine is made of vibrating screen, loading table, sorting host three parts. It can grade garlic

in demanded different sizes without any damage, and it can grade more numbers of grades beside the models

in specification table. The difference of middle and large size sorter is the output and the width of the mesh:

0.8m width mesh for middle size sorter, and 1.2m width mesh for large size sorter; the output for middle size

is 4-6t/h, and the output for large size sorter is 8-10t/h Number of grades: means how many grades the sorter

can select, it is equal to the number of the discharge ports.

Item	Middle Size sorter
model	5XFSY-800/3A	5XFSY-800/4A	5XFSY-800/5A	5XFSY-800/6A
Number of grades	3	4	5	6
Size(mm)	7300×1900×1800	8900×1900×1800	10100×1900×1800	11300×1900×1800
Weight(kg)	1040	1188	1445	1625
Output(t/h)	4-6	4-6	4-6	4-6
Voltage	380V	380V	380V	380V
Power	4.76KW	5.51KW	5.51KW	5.51KW
Mesh material	PVC/Metal availiable	PVC/Metal availiable	PVC/Metal availiable	PVC/Metal availiable

Item	Large Size sorter
model	5XFSY-1200/2A	5XFSY-1200/3A	5XFSY-1200/4A	5XFSY-1200/5A
Number of grades	2	3	4	5
Size(mm)	8600×3000×2000	970×3000×2000	11200×3000×2000	12700×3000×2000
Weight(kg)	1337	1728	2090	2301
Output(t/h)	8-10	8-10	8-10	8-10
Voltage	380V	380V	380V	380V
Power	4.18KW	6.02KW	7.49KW	8.96KW
Mesh material	PVC/Metal availiable	PVC/Metal availiable	PVC/Metal availiable	PVC/Metal availiable
model	5XFSY-1200/6A	5XFSY-1200/7A	5XFSY-1200/8A	5XFSY-1200/9A
Number of grades	6	7	8	9
Size(mm)	14200×3000×2000	15700×3000×2000	17200×3000×2000	18700×3000×2000
Weight(kg)	2788	3058	3328	3598
Output(t/h)	8-10	8-10	8-10	8-10
Voltage	380V	380V	380V	380V
Power	10.43KW	11.9KW	13.37KW	14.84KW
Mesh material	PVC/Metal availiable	PVC/Metal availiable	PVC/Metal availiable	PVC/Metal availiable

Item	Accessories
model	Vibrator for Large size sorter	Loading Lift	Sorter Unit
Number of grades	/	/	3
Size(mm)	2600×1320×800	2750×1570×2000	4000×3000×1720
Weight(kg)	338	336	1021
Voltage	380V	380V	380V
Power	0.5KW	0.55KW	3.97KW

Accurately sort garlic according to different standards to ensure that each category of garlic receives appropriate

processing and packaging.
