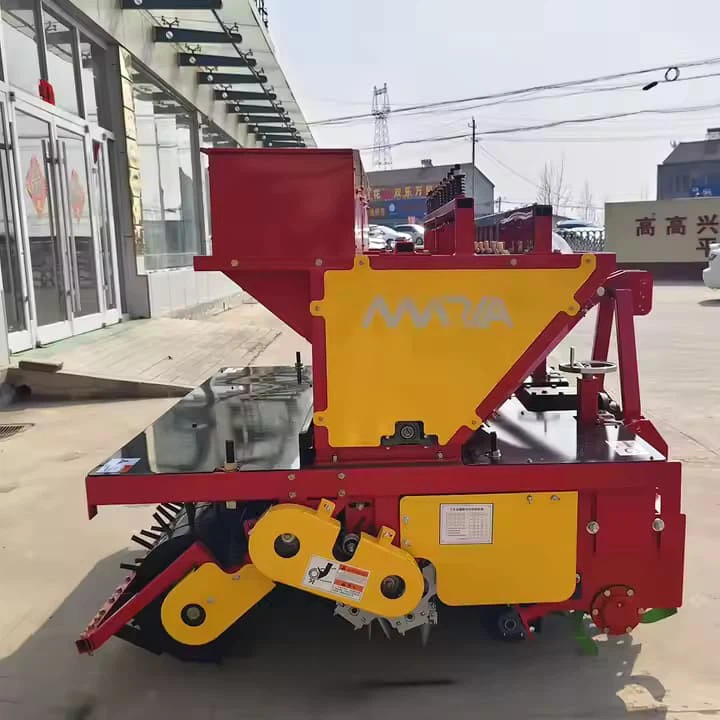

Precision Vertical Large Garlic Seeder Machine 7 Row Seed Planter With Spare Parts Adjustable Row Spacing Farm Planter
Maria Machinery has pioneered the world's first precision vertical garlic planter, ensuring a minimum of 93% garlic clove seeds are planted upright. It isequipped with a soil turner for optimal performance. Row spacing can be customized, plant spacing can be adjusted, can also be customized according to the planting pattern of large and small row pattern, ridge pattern, etc. Flat garlic planter ensures precise sowing, consistent spacing, and uniform seed distribution, making it suitable for lands of all sizes. It saves time, reduceslabor, and cuts costs, earning widespread customer satisfaction.
Product Introduction
About Us
How we started
2024
Listed In National Vegetable Mechanization Innovation Achievements
First Prize for Shandong MachineryIndustryScience Award
2023
Honored as National-Level SRDI(Specialized,Refined,Distinctive ,and Innovative )Little Giant Enterprise
2022
Awared as Shandong Province Gazelle Enterprise,shandong SRDI(Specialized,Refined,Distinctive ,and Innovative )Enterprise:Shandong High-Quality Brand
2018
Recognized as the National High-Tech Enterprise
2017
Maria Machinery researched and manufactured the world's first set of precison bud-oriented garlic planter , filling the domestic and abroad technology blank
2014
The National CCTV Channel' Science and Education Programme "I love Invetion" reported Maria's garlic sorting machine
2012
The company's first set of garlic sorting machine was off the production line and the annual volume reached over 1000 pcs
2011
Shangdong Maria Agricultural Machinery Co.,LTD was established
01
Onion sorter
Onion (fruit) sorting machine includes three parts, brush machine, loading table, sorting host. It can accurately sort onion grades
and remove onion surface dust and floating skin
02
Gralic planter
Row spacing can be customized, plant spacing can be adjusted, can also be customized according to the
planting pattern of large and small row pattern, ridge pattern, etc
03
Gralic planter
Maria Machinery has pioneered the world's first precision vertical garlic planter, ensuring a minimum of 93% garlic clove seeds are planted upright. It is
equipped with a soil turner for optimal performance
04
Garlic sorter
the output for middle
size is 4-6t/h, and the output for large size sorter is 8-10t/h
05
Garlic sorter
the output for middle
size is 4-6t/h, and the output for large size sorter is 8-10t/h
06
Gralic peeler
It can achieve one-stop automatical service for galic's splitting , grading, peeling washing
07
08
We have 3 Spanish Engineers, 6 Chinese Engineers, and over 50 technicians, we also have a long term R&D cooperation with Jining College I.Maria Garlic and Onion sorters machine are with our own patent and has CE certification.
The company was established in 2011.Currently We invent,design and manufacture the most advanced high-tech garlic machines with our own strongest research and invent team.
The machines are well sold in Jinxiang, Pizhou, Laiwu, Linyi, Qingdao, Heze, and Henan etc. Our market share is over 90%. We also have exported to Spain ,Poland ,peru and indonesia. Our products are highly recognized by customer in China and overseas
some statistics about us you must know
Shandong Maria Machinery Co., Ltd
15
+
Years of experience
90
%
makert share
5000
+
FACTORY AREA
10000
+
annual
Productivity
company exhition
Cooperating organization
Honor and qualification
Official certification
ce certification
ce certification
ce certification
ce certification
CQ,M certification
product advantages
Lorem ipsum dolor sit amet consectetur adipisicing elit.
wide application of technology
A senior manufacturing enterprise with professional design, R&D and manufacturing teams.
large enterprise scale
Efficient and precise processing and testing equipment.
High-Quality Customized Services
No intermediate links, providing one-stop service from design, processing, mold trial to mass production.
Standardized Production
Passed ISO9001 certification and obtained relevant patent certificates.
Maria Machinery has pioneered the world's first precision vertical garlic planter, ensuring a minimum
of 93% garlic clove seeds are planted upright. It is equipped with a soil turner for optimal performance.
Row spacing can be customized, plant spacing can be adjusted, can also be customized according to
the planting pattern of large and small row pattern, ridge pattern, etc
Mechanization of garlic planting:
1.The effective and reasonable configuration of the entire machine ensures stable and reliable operation processes.
2.Quickly adjust the direction of the garlic head to make it face upwards, ensuring the survival rate of planting.
3.Intermittent continuous planting to ensure planting row spacing and planting frequency.
4.Planting density and sowing uniformity coefficient.
| Item | Flat Planter | |||||
| model | 2BSXB-4 | 2BSXB-6 | 2BSXB-7 | 2BSXB-8 | 2BSXB-10 | |
| Required driving force | Tractor ≥18HP | Tractor ≥28HP | Tractor ≥30HP | Tractor ≥40HP | Tractor ≥50HP | |
| Size(mm) | 1780×1430×1050 | 1820×1480×1050 | 1820×1510×1050 | 1820x1530x1050 | 1820×2050×1050mm | |
| Weight(kg) | 276 | 325 | 453 | 525 | 595 | |
| leak seeding rates | ≤3% | ≤3% | ≤3% | ≤3% | ≤3% | |
| Suitable row spacing | 100-500mm can be customized |
100-500mm can be customized |
100-500mm can be customized |
100-500mm can be customized |
100-500mm can be customized |
|
| Rows | 4 | 6 | 7 | 8 | 10 | |
| Seeds distance(mm) | 50-240(adjustable) | 50-240(adjustable) | 50-240(adjustable) | 50-240(adjustable) | 50-240(adjustable) | |
| Working width(mm) | 1140 | 1200 | 1260 | 1320 | 1800 | |
| Speed(km/h) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Necessary forms | three-point suspension after | three-point suspension after | three-point suspension after | three-point suspension after | three-point suspension after | |
| Drip irrigation | Optional accessory | Optional accessory | Optional accessory | Optional accessory | Optional accessory | |
| Item | Precise Planter | ||||||
| model | 2BSXZ-7 | 2BSXZ-8 | 2BSXZ-10 | 2BSXZ-11 | 2BSXZ-12A | 2BSZB-5 | |
| Required driving force | Tractor≥60HP | Tractor≥80HP | Tractor ≥90HP | Tractor ≥90HP | Tractor ≥100HP | Self-Propelled | |
| Size(mm) | 1820x1480x1450 | 1915x1820x1450 | 1915x2046x1450 | 1915x2245x1450 | 1915x2255x1450 | 2000x1050x1300 | |
| Weight(kg) | 794 | 920 | 1010 | 1128 | 1150 | 390 | |
| leak seeding rates | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | |
| vertical buds rate | ≥93% | ≥93% | ≥93% | ≥93% | ≥93% | ≥93% | |
| Suitable row spacing | 180mmcan be customized | 180mmcan be customized | 180mmcan be customized | 180mmcan be customized | big row space :250mm small row space 110mm | 180mmcan be customized | |
| Rows | 7 | 8 | 10 | 11 | 12 | 5 | |
| Seeds distance(mm) | 90-240(adjustable) | 90-240(adjustable) | 90-240(adjustable) | 90-240(adjustable) | 90-240(adjustable) | 90-240(adjustable) | |
| Working width(mm) | 1260 | 1600 | 1800 | 1980 | 1990 | 900 | |
| Speed(km/h) | 1 | 1 | 1 | 1 | 1 | 0.8 | |
| Drip irrigation | Optional accessory | Optional accessory | Optional accessory | Optional accessory | Optional accessory | Optional accessory | |
| Necessary forms | three-point suspension after | three-point suspension after | three-point suspension after | three-point suspension after | three-point suspension after | With bulit-in gasoline engine | |
Garlic planters can be used in flat and hilly areas. By adjusting the direction of the garlic root,
large-scale continuous seeding operation is convenient, good adaptability, uniform seeding,
less leakage, is the most popular garlic seeder on the market.
Company Profile
Shandong Maria Agricultural Machinery Co., Ltd. is located in Jinxiang, Shandong, the hometown
of garlic in the world. It is a national high-tech enterprise, a national-level "specialized, refined,
special, and new" small giant enterprise, a Shandong provincial-level specialized and refined new
enterprise, a Shandong provincial-level gazelle enterprise, and a leading enterprise for rural revitalization
in Shandong Province, etc. At present, Maria Machinery is also a national modern agricultural science
and technology demonstration base for women, a Shandong provincial modern agricultural science
and technology demonstration base for women, a Shandong provincial agricultural machinery assembly,
research and development, test and demonstration base, a Shandong provincial intellectual property
advantage enterprise cultivation library enterprise, etc.
The company is committed to designing, developing, producing, and selling the whole-process garlic
machinery and equipment required in the Chinese garlic industrial chain.
The company has more than 260 domestic-owned patents, applied for 6 PCT international patents,
has multiple trademarks such as "Maria", registered a Madrid international trademark, and smoothly passed
the environmental quality and safety three-system certification.
The company positions its global development strategy, provides whole-process mechanization products
and socialized services for garlic globally, uses product technology and cost-performance advantages, and
deeply cultivates domestic and international markets.
The whole-process mechanization equipment for garlic planting, harvesting, and deep processing has been
widely used in 29 provinces, municipalities, and autonomous regions across the country such as Shandong,
Henan, Hebei, Jiangsu, Sichuan, Hubei, Shanghai, Tianjin, Inner Mongolia, and Xinjiang. The whole-process
mechanization equipment for garlic has been sold to more than 20 countries and regions such as Spain,
Argentina, Korea, India, and Egypt.
